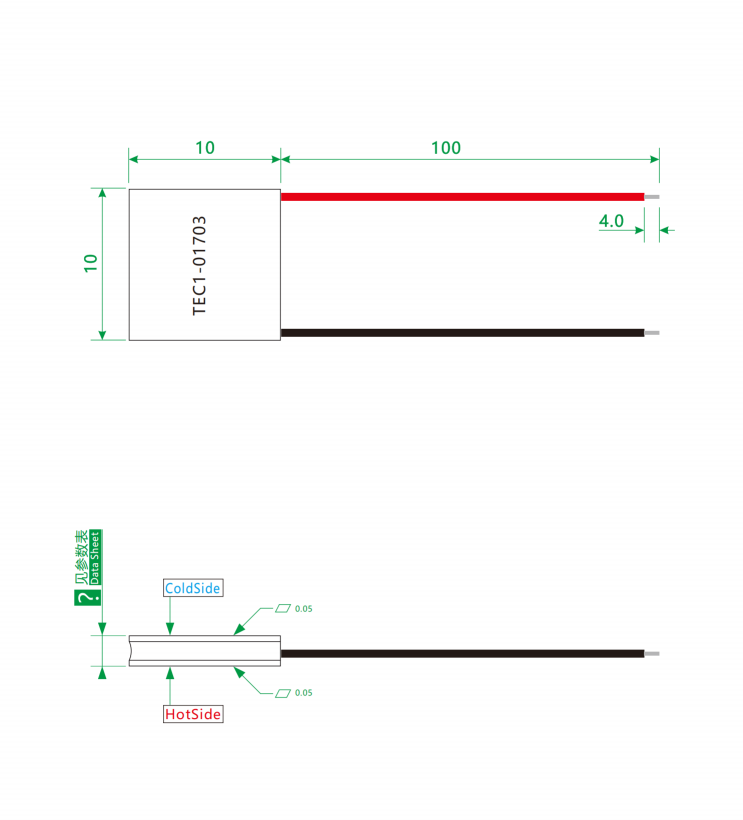

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Type model | In APE | ▲Tmax(°C) | ACRohm(Ω) | Umax(V) | Imax(A) | Pmax(W) | Size(mm) |
|---|
| TEC1-01703 | K10 | 60 | 0.52 | 2 | 3 | 6 | 10x10x3.0 |
| K14 | 65 | 0.52 | 2 | 3 | 6 | 10x10x3.4 |
| K18 | 70 | 0.52 | 2 | 3 | 6 | 10x10x3.8 |
🔷Additional Performance Spec
| Item | Specification |
|---|
| Substrate Specification | 96% Alumina 0.76 + Oxygen-free Copper 0.2 Sintering Process |
| Wire Specification | Silicone wire 26AWG / L=100mm |
| Terminal Specification | Standard product has no terminals; can be added upon request |
| Assembly Pressure | 0.25kg / (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) foam box packaging |
| Sealing Material | 704 silicone rubber seal |
| Maximum Temperature Resistance | Bismuth-tin environmentally friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60%Rh
|
🔷Performance Curve
![]()
🔷Product Overview

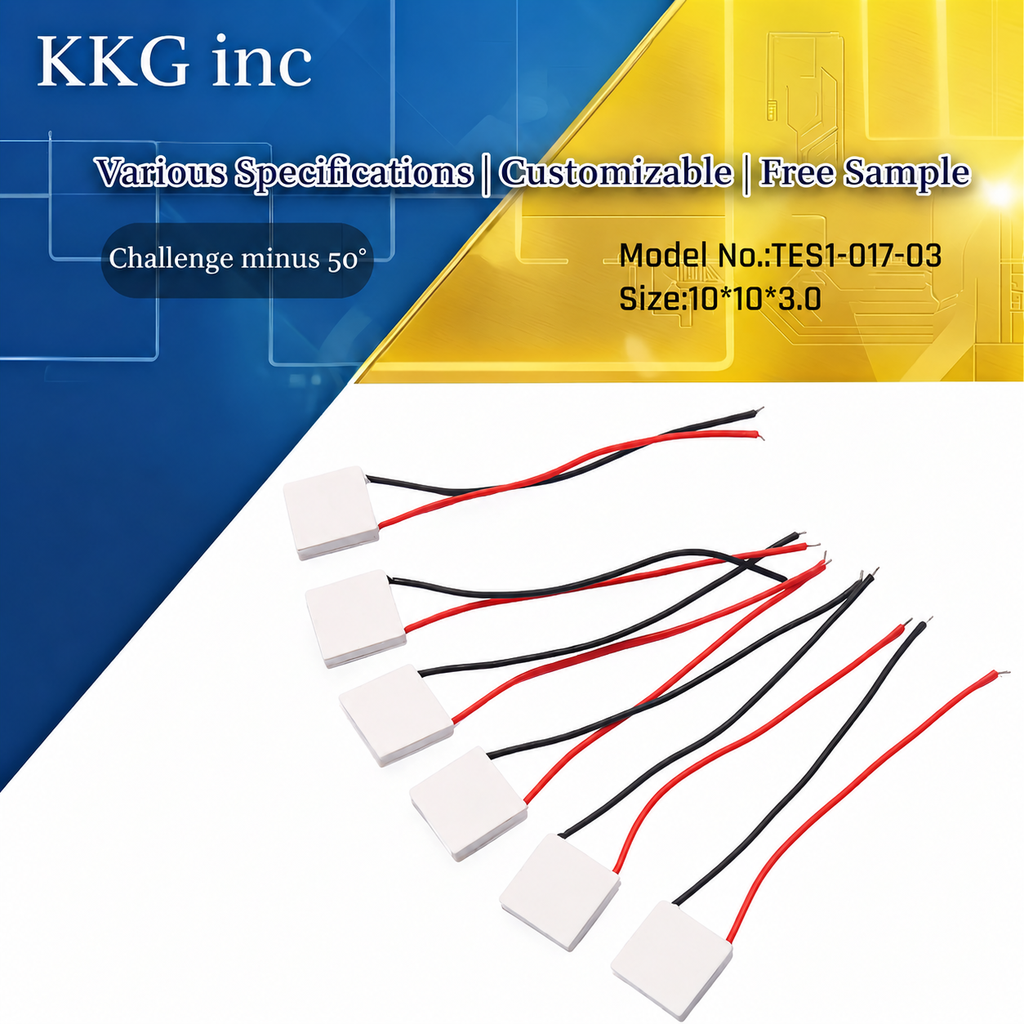

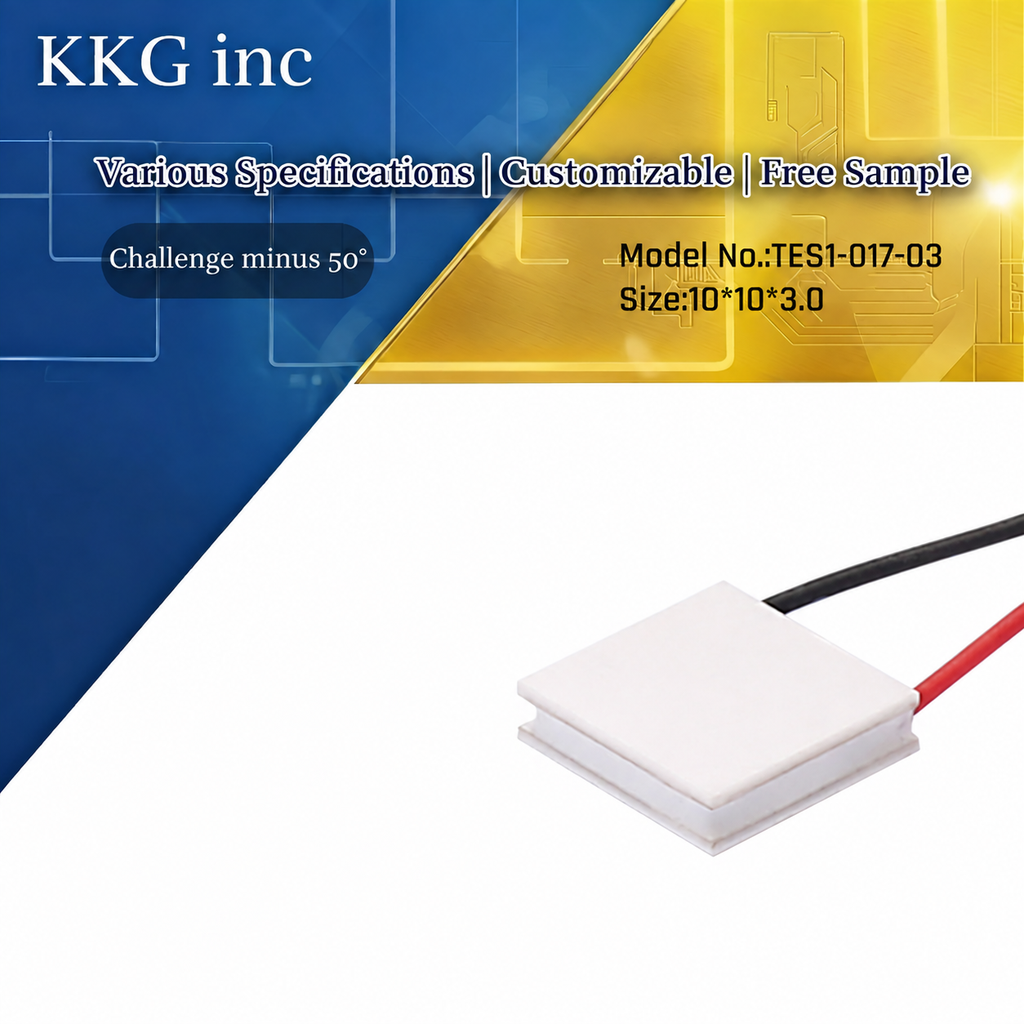

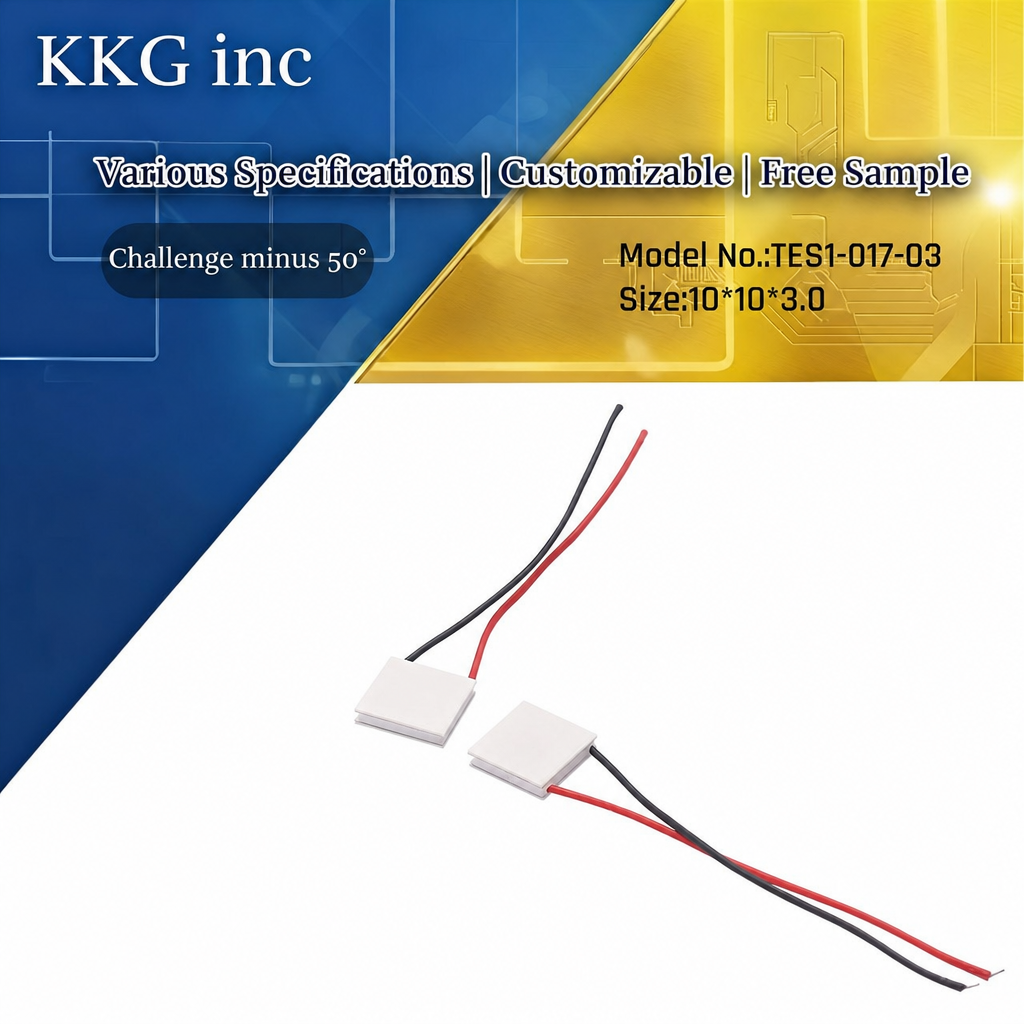

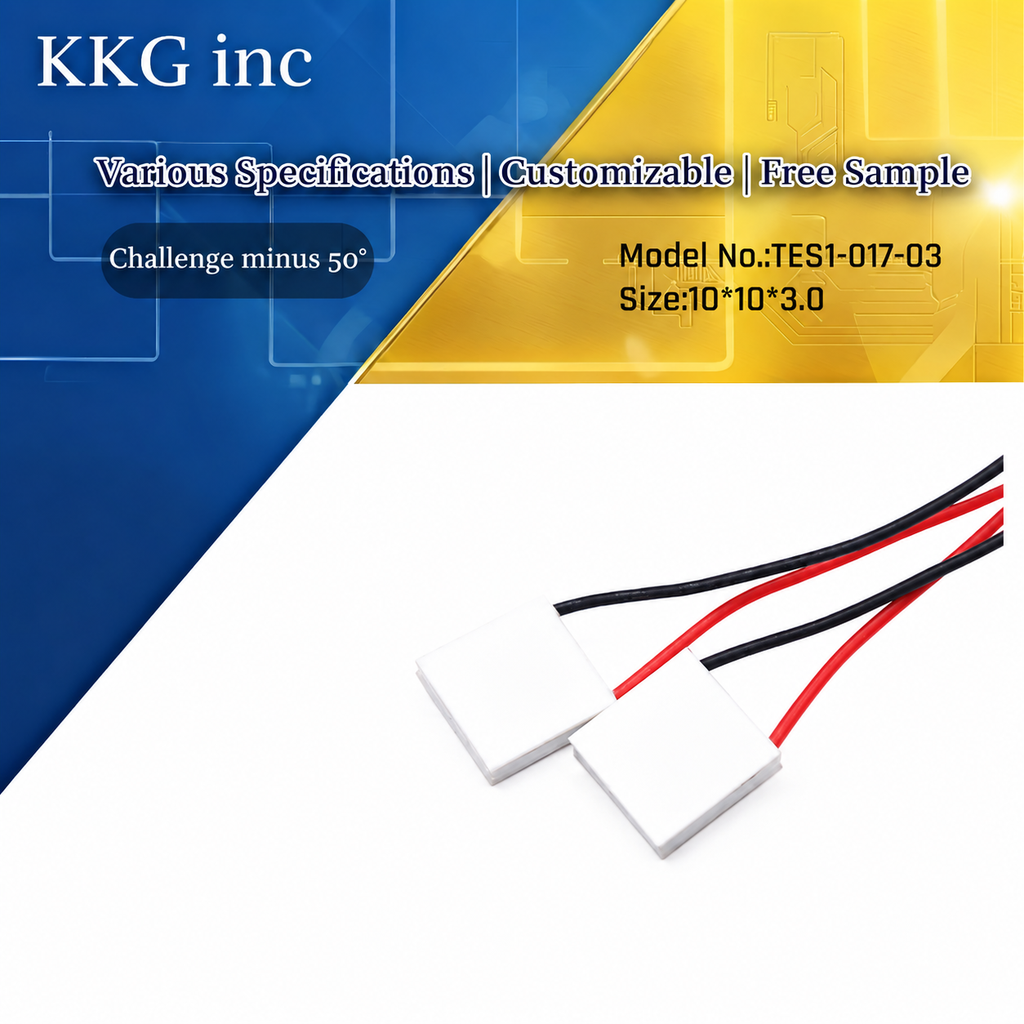

This 10*10mm thermoelectric cooler peltier is a small-size peltier module kit. We are a peltier module kit supplier, support wholesale thermoelectric cooler kit, OEM and custom peltier cooling kit. It adopts semiconductor thermoelectric technology, realize fast cooling and heating without refrigerant.
🔷Product Features
- Compact 10*10mm small footprint, easy integration into mini devices
- Fast temperature response, bidirectional cooling & heating
- Stable performance, long service life, no vibration
- Available for wholesale, OEM and custom peltier cooling kit service
🔷Product Applications
Semiconductor temperature control, laser cooling, laboratory small refrigeration equipment, precision instrument thermal management, small medical cooling device.
🔷Product
![]()
🔷Operation Principle / Work Principle
Based on Peltier effect. When DC current passes through the thermoelectric material, heat transfers from one side to another, one surface gets cold and the other side heats up, achieve active temperature control.
🔷FAQ
Q1: Can I get wholesale thermoelectric cooler kit of this 10*10mm peltier?
A1: Yes, we support bulk wholesale, OEM and custom peltier module kit service.
Q2: Is custom peltier cooling kit available?
A2: Yes, we can customize size, wire length and assembly according to your requirement.
Q3: What application scenarios is this thermoelectric cooler suitable for?
A3: It fits laser cooling, semiconductor temperature control and precision small equipment thermal management.
